Maeda MC405C

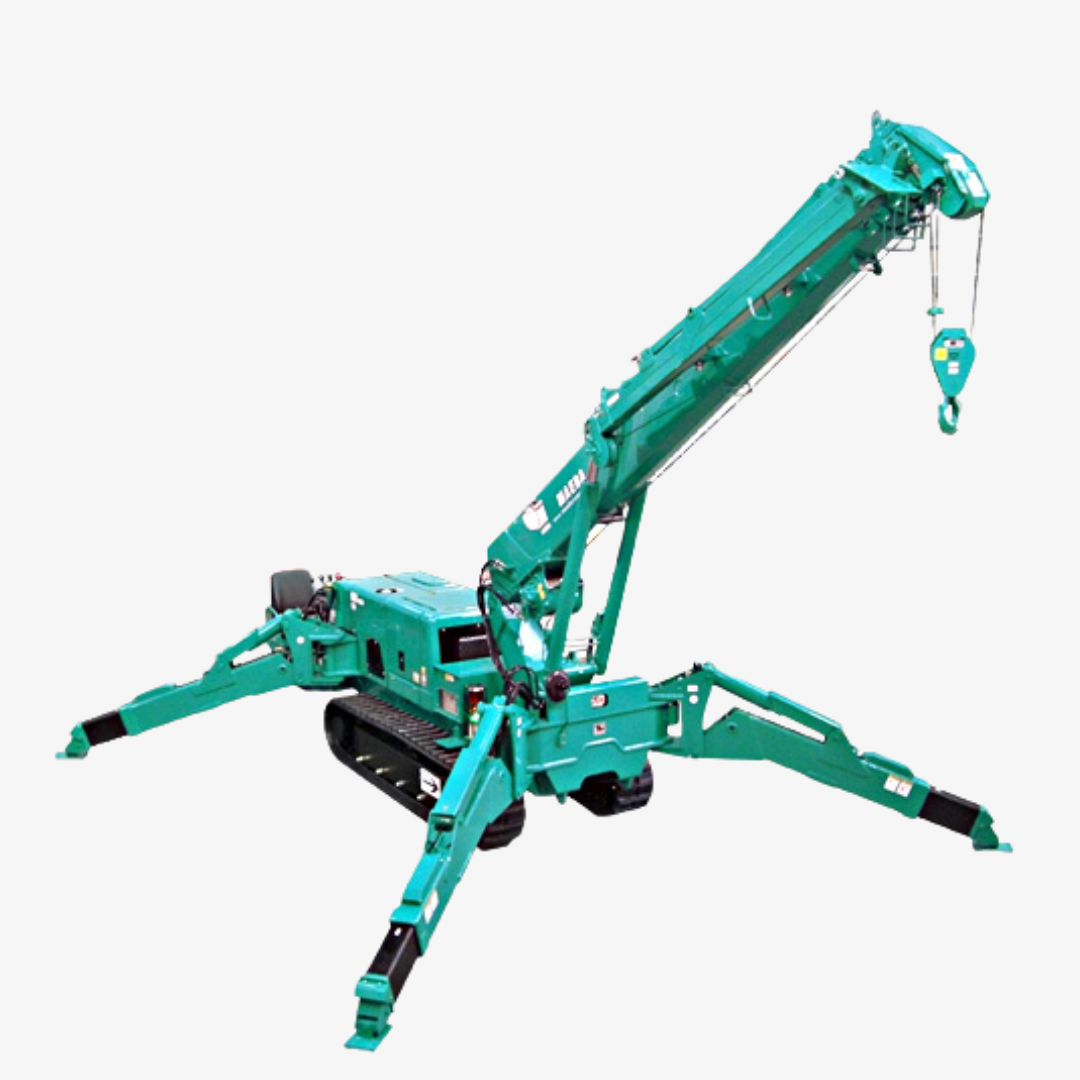

The Maeda MC405C Mini Crane is a compact, mobile crane that is ideal for a variety of lifting and demolition applications. With a maximum lifting capacity of 4 metric tons and a compact design, this crane can maneuver in tight spaces and provide a high degree of precision during operation. It features a telescoping boom, multiple outriggers, and 360-degree rotation capabilities, making it versatile and efficient for a range of tasks.

Engine: Yanmar 3TNV88F-EPMB
Crane Capacity: 8,480 lbs
Dual Power: 7.5 kw, 4P, 230V, 3 phase, Inverter 30 hz – 60 hz
Operating Mass: Diesel Model 12,400 lb. Electric Dual Power +279 lb. (Fly Jib +330 lbs)

Learn about the Maeda MC405C below

 Download brochure (PDF)

Quick Quote
Category:

DESCRIPTION

The Maeda MC405C Mini Crane is a compact and mobile crane solution, perfect for various lifting and demolition projects. With a maximum lifting capacity of 4 tons, this crane can easily navigate tight spaces while providing precise operations. It features a telescoping boom, multiple outriggers, and full 360-degree rotation abilities, providing versatility and efficiency in a range of tasks.

SPECIFICATIONS



Maximum Capacities
Maximum Capacity 8480 lbs
Max. Working Radius 52.5′
Max. Lifiting Height 55.1’, 69.0’ w/ Fly Jib
Boom System
Hook Speed 39.4 ft./min [59 ft./min] 4 Part/4th Layer
Hoist Rope IWRC 6 x WS(26) 8mm x 301’
Boom Type Automatic 5 Section, Pentagonal Telescopic
Boom Length 15.5’ – 54.5’
Telescopic Stroke/Speed 38.5’ / 54.2 sec [41.3 sec]
Fly Jib Type Single Length, Box Tube, 1 Point Sheave
Fly Jib Length 14.8’, Total Boom + Fly Jib – 68.8’
Fly Jib Stowage Swing Away, Side Stowed On Boom Base
Boom Hoist Angle/Speed 0° – 80°/ 24.5 sec [17 sec]
Swing Radius / Speed 360° / 2.1 RPM [2.5 RPM]
Travel/Crawler System
Drive Hydraulic Motor, Stepless Speed Changer
Travel Speed 0 – 1.80 mph
Gradeability 20° Design Limit | 15° Set Limit
Gradeability 7.25 PSI Diesel Model / 7.40 PSI Electric Dual Power Model
Engine
Engine Type Yanmar 3TNV88F-EPMB / 4 Cycle, 3 Cylinder, Water Cooled
Rated Output 23.5 hp / 2400 min-1, 28.3 ps / 2400 RPM
Fuel Tank 15.8 Gallon
Miscellaneous
Electric Motor (Dual Power)
Type/Size
Totally Enclosed Fan Cooled Motor/
7.5 kw, 4P, 230V, 3 phase, Inverter 30 hz – 60 hz
Remote Control Cable Remote Control, Crane & Outrigger Operation, Graduated Micro Speed, Load & Rated Load LCD Display
Dimensions (Stowed L x W x H) L 16’4” x W 4’7” x H 6’6”
Net Weight Diesel Model 12,400 lb. Electric Dual Power +279 lb / Fly Jib +330 lb.
Pick & Carry Capacity 1,100lb
Optional Equipment Boom Tip Searcher Hook, Wireless Remote, White Rubber Tracks, Single Part Ball/Hook, Man Basket, Rotation Resistant Wire Rope, Oktopus Glass Lifter/Manipulator, Custom Paint Color, Exhaust Scrubber, Transport Trailer, Outrigger Pads Searcher Hook 1,870lb (850kg) / 3,300lb (1,500kg) Fly jib 1,140lb (520kg)

BENEFITS & FEATURES

  • 5 SECTION BOOM – 55.1’ (16.8m)
  • BOOM TIP SEARCHER HOOK (option)
  • FLY JIB (option)
  • PICK & CARRY
  • RUBBER TRACKS 2 SPEED TRAVEL & CRANE FUNCTIONS
  • MOMENT LIMITER DIGITAL LOAD SYSTEM
  • ANTI TWO BLOCK, TILT SENSOR ALARM
  • 360° SWING AUTOMATIC HOOK STOWAGE
  • OPERATOR’S SEAT WITH CENTRALIZED CONTROLS
  • REMOTE CONTROL WITH LOAD CAPACITY DISPLAY
  • EPA COMPLIANT DIESEL ENGINE, DUAL POWER ELECTRIC MOTOR (option)
