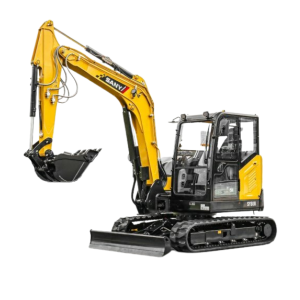

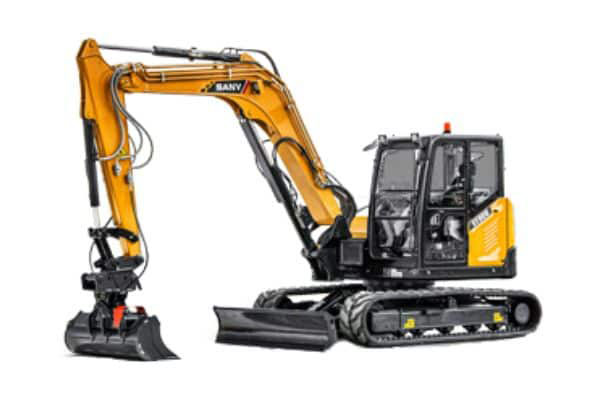

SANY SY80U 8.8T

This machine is the Whole Package! Compact, Powerful and Comfortable. With compact dimensions and minimal slewing radius, the SY80U is the smallest compact excavator there is. If you need precise power in confined spaces, this is the machine for you.

Gross Power: 54.4 KW
Dig Depth: 4534 mm
Operating Weight: 8800 kg
Bucket Breakout: 16,343 lbf
Warranty: 4 Year/8000 hr
Availability: In Stock

 Download brochure (PDF)

Quick Quote

DESCRIPTION

Compact. Powerful. Comfortable – SANY SY80U EXCAVATOR:

If you’re looking for the whole package, you’ve found it with the SANY SY80U! An impressive 8.8t operating weight supports maximum stability alongside its minimal tail swing radius. Thanks to its compact, rounded, and short tailed design, the operator can completely focus on the project at hand with a smoother operation even in confined spaces.

This excavator has impressive versatility perfect for any construction site and is primarily utilised in confined spaces that face impaired visibility.

This 8.8t digger displays efficiency in the smallest of spaces thanks to its key features:

  • Guaranteed durability in the toughest conditions

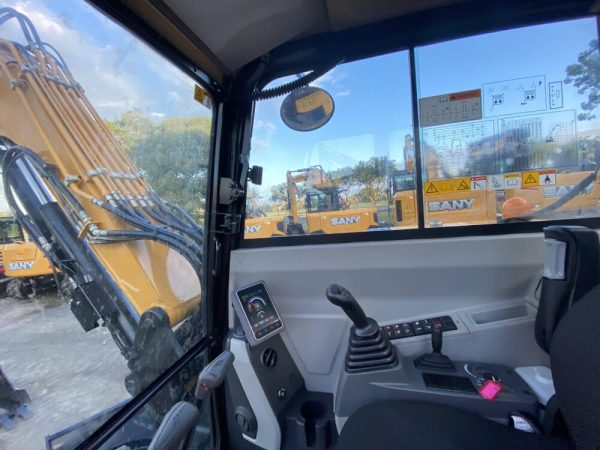

  • Maximum comfort = maximum productivity

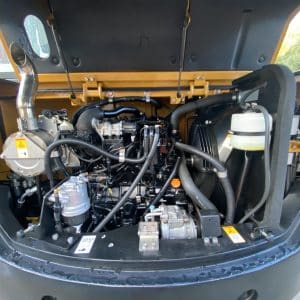

  • Yanmar 4-cylinder diesel engine
  • Auto speed settings to reduce fuel consumption
  • Comprehensive safety features as standard
  • Compact, short tail swing excavator
  • 2 prop. control circuits on the joystick

The SY80U is designed for optimised performance in a variety of applications including road and line construction, bridge work, redevelopment in housing construction, landscaping and many more.

SPECIFICATIONS

ENGINE
Displacement 3.3 L
Rated power 54 kW / 2100 rpm
OPERATION RANGE
Max. digging depth 4535 mm
Max. digging height 7315 mm
Max. digging reach 7290 mm
Max. dumping height 5490 mm
Max. vertical digging depth 2490 mm
Operating weight 8800kg
DIMENSIONS
Min. ground clearance 480 mm
Tail swing radius 1480 mm
Transport height 2550 mm
Transport length 7010 mm
Transport width 2200 mm
Upper width 2200 mm
UNDERCARRIAGE/WORKING DEVICE
Boom length 3499 mm
Track gauge 1750mm
PERFORMANCE
Arm digging force 40.5 kN
Bucket digging force 73 kN
Engine oil 10.2 L
Fuel tank capacity 100 L
Gradeability 35°
Ground pressure 41 kPa
Hydraulic tank capacity 120 L
Swing speed 10 rpm
Travel speed 2.5 km/h / 4.5 km/h

FEATURES & BENEFITS

+ High efficiency and low consumption engine
+ Large-capacity Fuel Tank with Anti-rust treatment

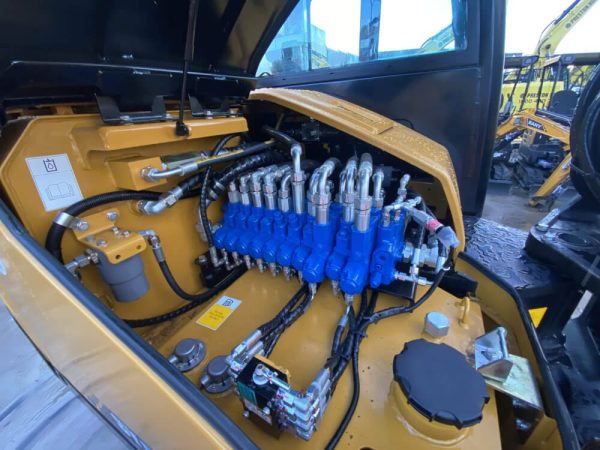

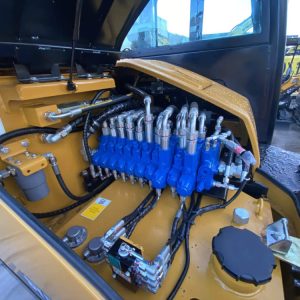

+ Load-sensing hydraulic system provides increased efficiency and control
