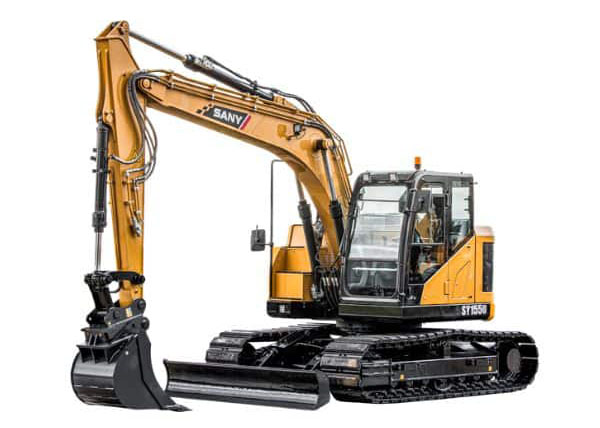

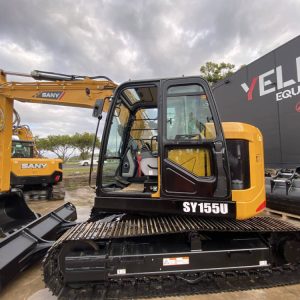

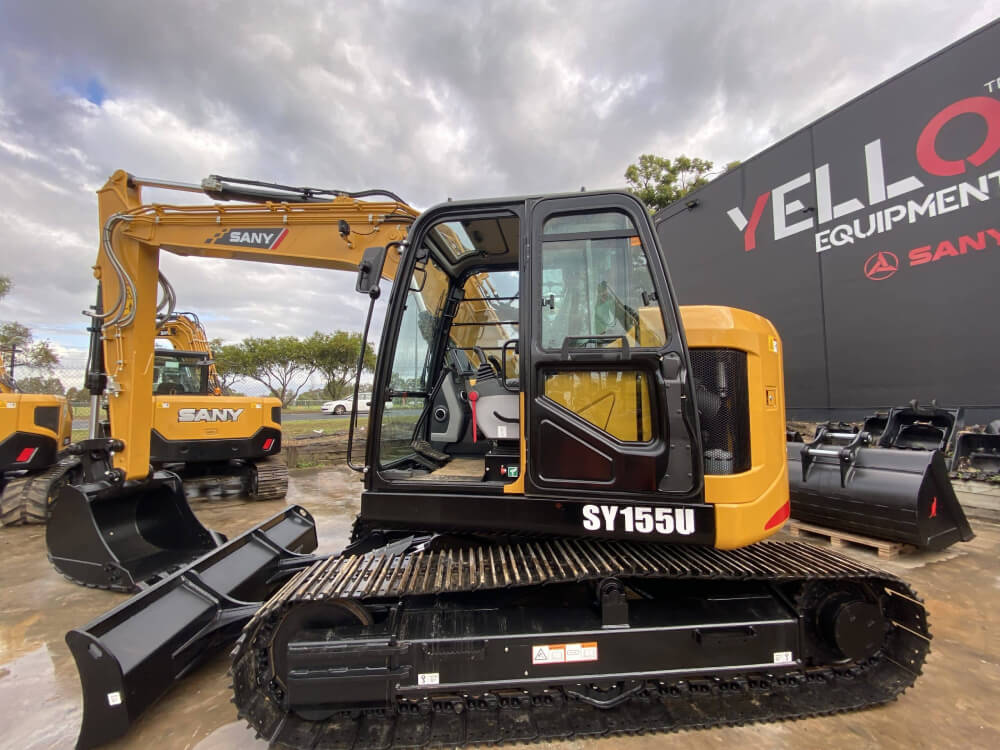

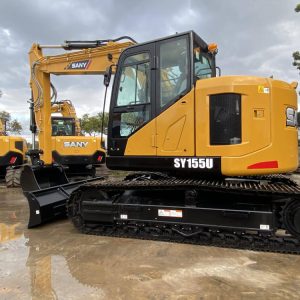

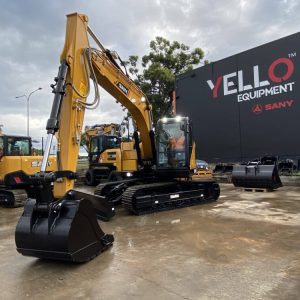

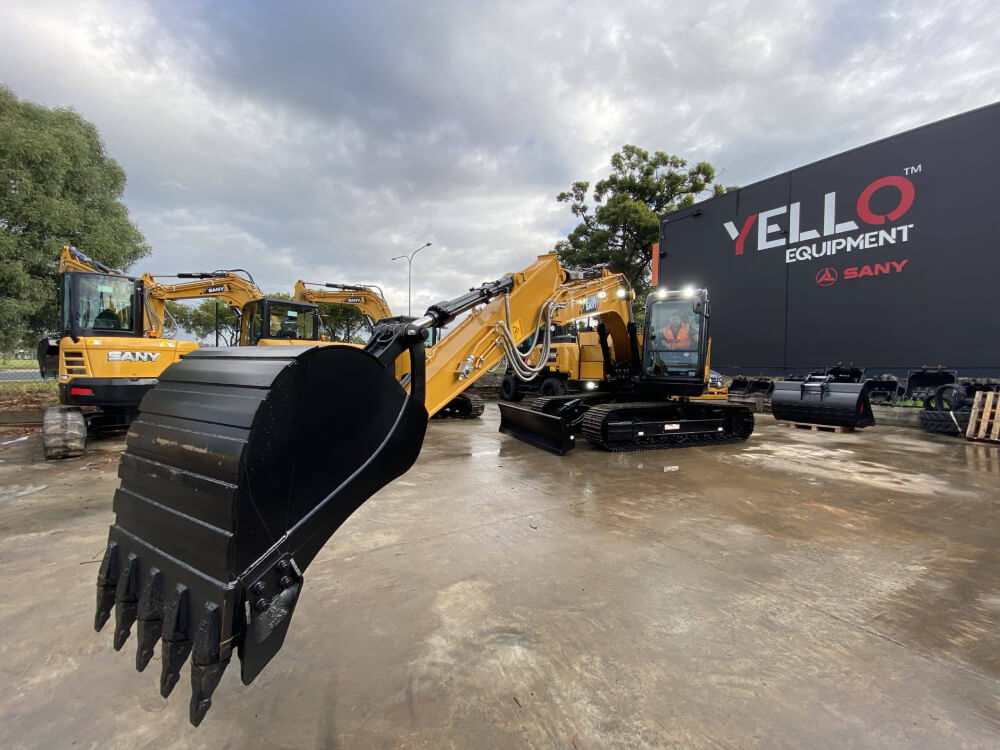

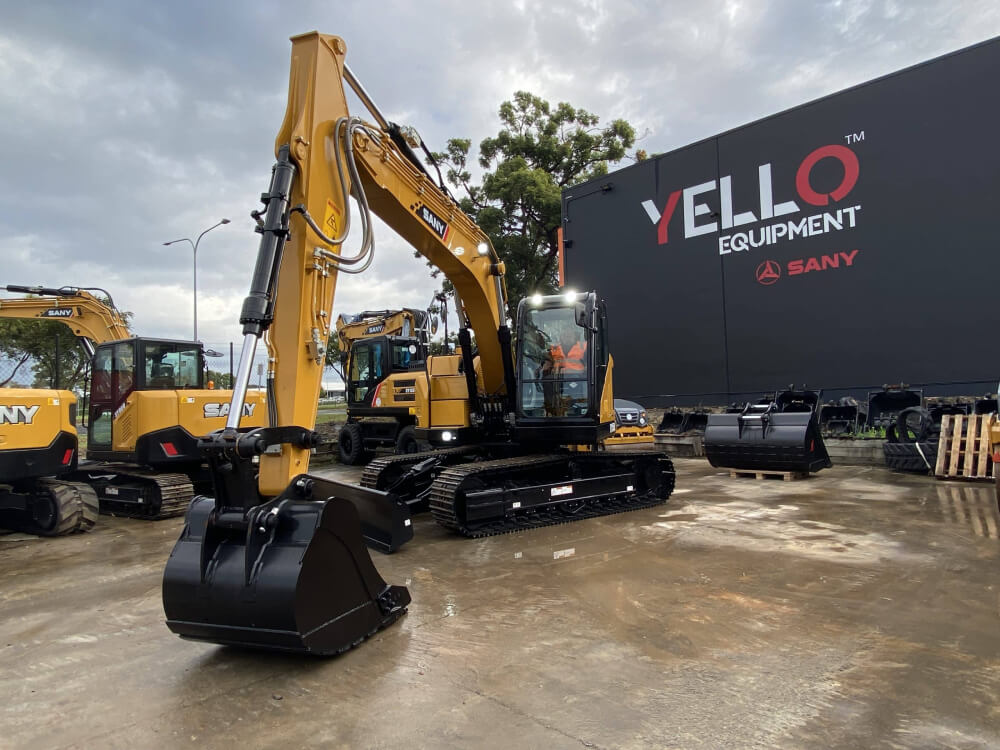

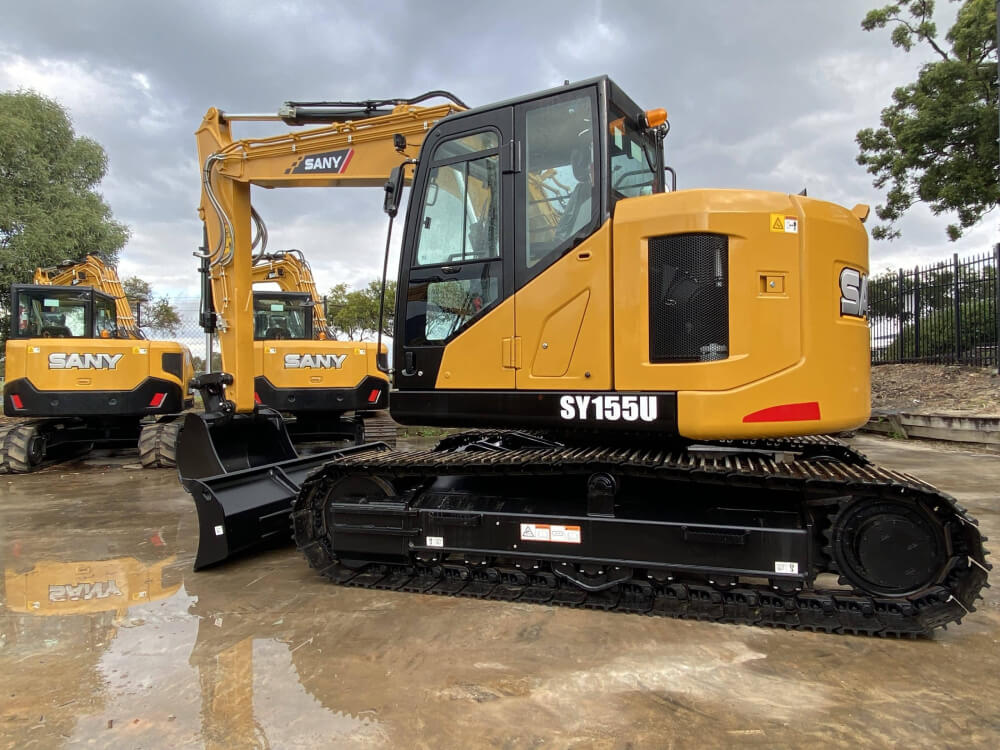

SANY SY155U 16T

This machine was built using the feedback of experienced operators to ensure it delivers maximum comfort, efficiencies and impressive power. With a short slewing radius allowing it to work in extremely tight spaces, the SY155U will have you performing at your highest level every day.

Engine: ISUZU 4JJ1X
Rated Power: 78.5 kW / 1 900 rpm
Bucket Capacity: 0.6 m3
Operating Mass: 16 000 kg
Warranty: 5 Year/5000 hr

 Download brochure (PDF)

 Download Teir 3 brochure (PDF)

Quick Quote

DESCRIPTION

Quick. Precise. Powerful – SANY SY155U Excavator

For challenging tasks, you need a first-class partner. SANY has combined experience and innovative ideas to produce this impressive SY155U short-tail swing excavator. Its compact dimensions and impressive 16T operating weight allow it to work in extremely tight spaces with no reduction in performance. With this mid-sized earthmover, you will benefit from an exemplary price-performance ratio with its efficient use of fuel and minimal maintenance costs.

Thoroughly dependable with maximum load-bearing capacity and long service life, the SY155U is perfect for the harsh everyday conditions on site!

The fundamentals of the SY155U include features such as…

  • Ergonomic design and enhanced user experience
  • Stable foundation for durability and stability
  • Short-tail swing ideal for the tightest of spaces
  • Extensive safety package as standard
  • Reduced fuel consumption
  • Maintenance-friendly concept for general checks
  • 5 Year/5000 hr warranty

SANY has packed maximum working power into this compact excavator ensuring productivity is delivered today!

SPECIFICATIONS

ENGINE
Displacement 3.0 L
Rated power 78.5 kW / 1800 rpm
OPERATION RANGE
Max. digging depth 5468 mm
Max. digging height 9281 mm
Max. digging reach 8338 mm
Max. dumping height 6756 mm
Max. vertical digging depth 3796 mm
Operating weight 16000kg
DIMENSIONS
Min. ground clearance 425 mm
Tail swing radius 1500 mm
Transport height 3820 mm
Transport length 7300 mm
Transport width 2490 mm
Upper width 2490 mm

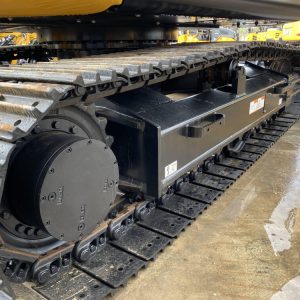

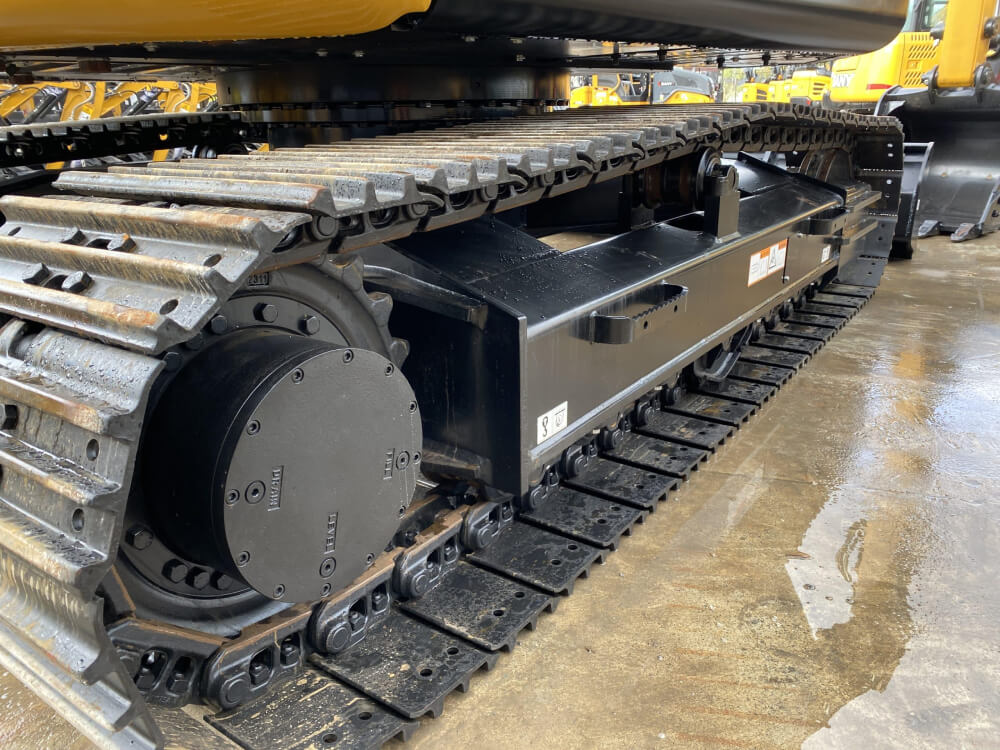

UNDERCARRIAGE/WORKING DEVICE
Boom length 4600 mm
Track gauge 1990mm
PERFORMANCE
Arm digging force 103 kN
Bucket digging force 103 kN
Engine oil 15 L
Fuel tank capacity 210 L
Gradeability 35°
Ground pressure 41 kPa
Hydraulic tank capacity 110 L
Swing speed 12 rpm
Travel speed 5.3 km/h / 3.1 km/h

FEATURES & BENEFITS

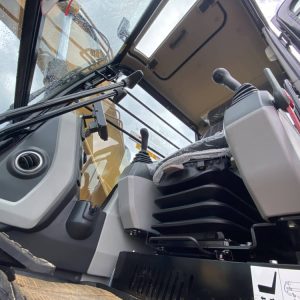

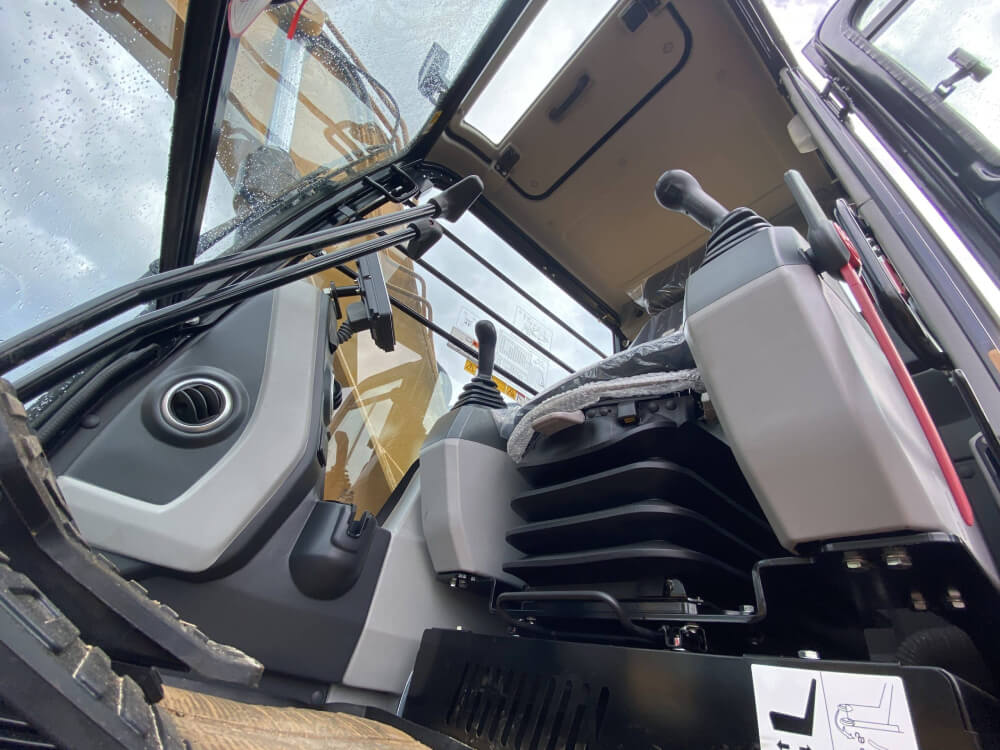

+ Air suspension seat
+ Reinforced chassis
+ Two proportional auxiliary control circuits on the joystick
+ Camera
+ Short-tail machine with compact dimensions
