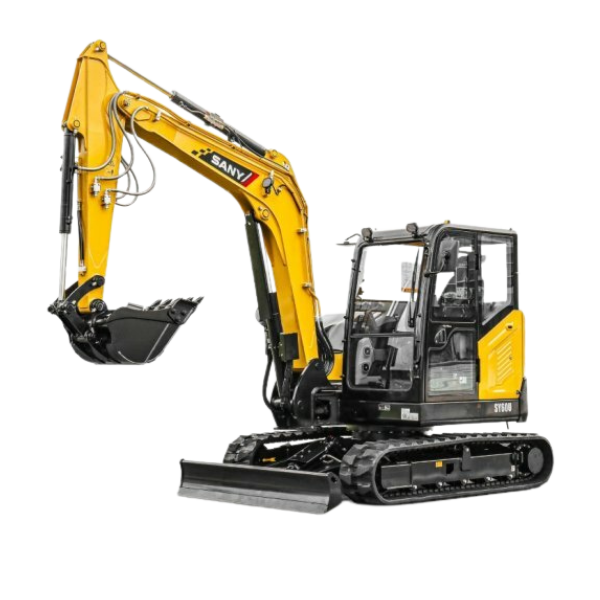

SANY SY60U 6.3T

Purpose-built for tight access sites and demanding work conditions, the newly upgraded SANY SY60U delivers exceptional performance with a powerful, emissions-compliant engine and cutting-edge hydraulic technology.

Engine: Yanmar 4TNV98c-WSY
Rated Power:
42.4 kW
Operating Mass:
6300 kg
Warranty:
5 Year/5000 hr
Availability:
In Stock
Finance:
Available now – LEARN MORE

 Download brochure (PDF)

Quick Quote

DESCRIPTION

SANY SY60U: Engineered for Strength, Comfort & Efficiency
Purpose-built for tight access sites and demanding work conditions, the newly upgraded SANY SY60U delivers exceptional performance with a powerful, emissions-compliant engine and cutting-edge hydraulic technology. With enhanced structural durability and smart hydraulic flow management, this compact excavator is designed to increase work efficiency while reducing fuel consumption.

Featuring reinforced components, a pressure cut-off hydraulic pump, and a load-sensitive system, the SY60U ensures long-term reliability with reduced overflow loss and improved control. Its compact frame and versatile auxiliary options make it ideal for a wide range of construction and earthmoving tasks — even in confined urban environments.

Key Features:

  • Emission-Compliant Engine: Meets the latest international standards for lower environmental impact

  • Optimised Hydraulics: Hengli pump with pressure cut-off reduces energy loss and increases efficiency

  • Reinforced Structure: Built for extended service life and rugged applications

  • Upgraded Cab: Wider view, high-back suspension seat, and improved operator comfort

  • Safety Focused: Emergency stop switch and low fuel consumption for peace of mind

Why Choose the SY60U?
From enhanced control to greater comfort and reliability, the SY60U offers a smart, durable, and efficient solution for modern worksites — all at an affordable price point. Ready to take your projects to the next level?

Contact us today to learn more or book a demo to see the SANY SY60U in action!

SPECIFICATIONS

ENGINE
Displacement 3.3 L
Rated power 42.4 kW
OPERATION RANGE
Max. digging depth 3990 mm
Max. digging height 5695 mm
Max. digging reach 6375 mm
Max. dumping height 3970 mm
Max. ground clearance of blade up 320 mm
Max. vertical digging depth 3130 mm
Min. swing radius 2730 mm
DIMENSIONS
Blade height 400 mm
Min. ground clearance 320 mm
Tail swing radius 1350 mm
Transport height 2530 mm
Transport length 5830 mm
Transport width 2000 mm
Upper width 2000 mm
UNDERCARRIAGE/WORKING DEVICE
Arm length 1700 mm
Boom length 3000 mm
Track gauge 1600mm
Track width 400 mm
PERFORMANCE
Operating Flow 148 L/min
Operating Pressure 27 MPa
Hydraulic tank Axial Piston – Variable Displacement
Swing speed 10 rpm
Travel speed 2.2 km/h / 3.8 km/h

FEATURES & BENEFITS

+ Advanced hydraulic systems
+High fuel efficiency and easy maintenance
+ Load sensing hydraulics
