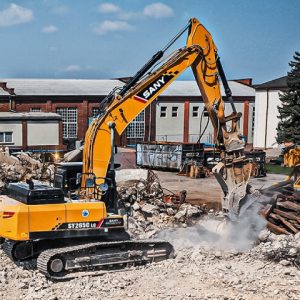

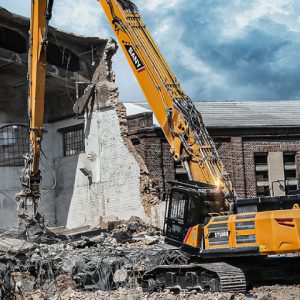

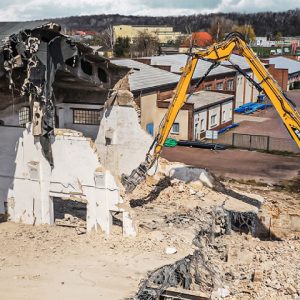

SANY SY500HRD 64T

You know it well: Despite meticulous planning, you always have to expect the unexpected when carrying out demolition work. Therefore it is great when you have work equipment available that not only stands out thanks to its performance, but also thanks to its flexibility – such as the SANY SY500HRD. Designed for maximum productivity and endurance, it impresses with its robust design and its versatility. With its extra-long boom, it takes the demolition tools to a whole new level. And, thanks to the hydraulically extendible chassis, it achieves outstanding stability, even when things get really tough.

Gross Power: 298 kW/ 2100 rpm
Reach Height: 28.15 m
Operating Weight: 64 000kg
Warranty: 4 Year/8000 hr*

Quick Quote

DESCRIPTION

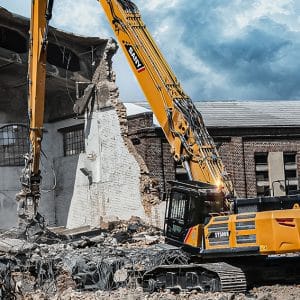

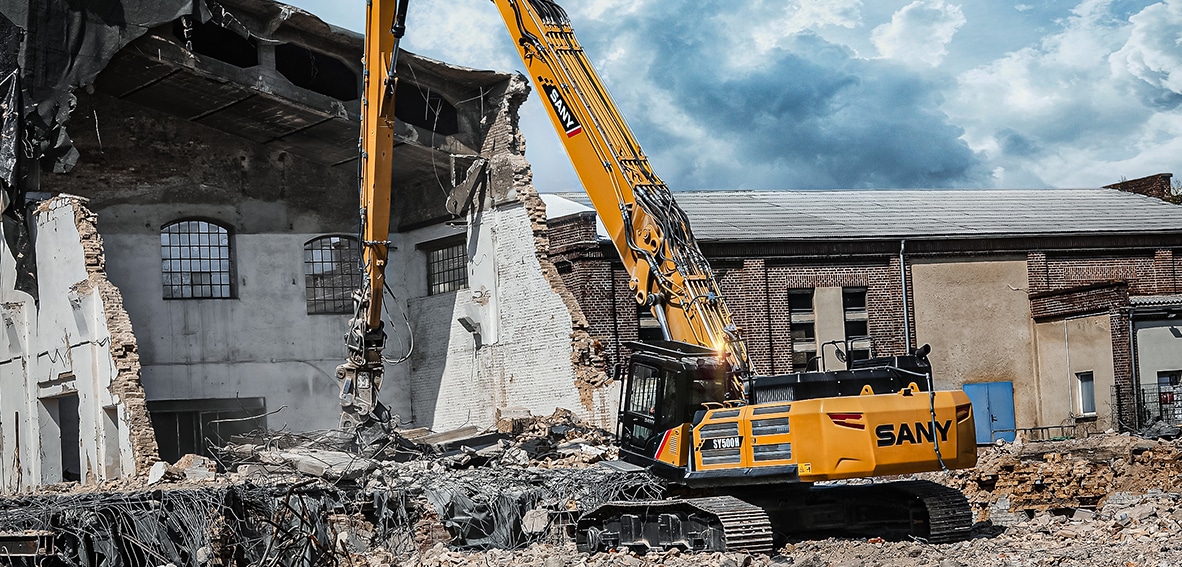

Maximum Power. Maximum Productivity – SANY SY500HRD Demolition Excavator

Demolition work is unpredictable, but with the SANY SY500HRD, you’re always prepared. Built for power, precision, and flexibility, this demolition excavator is designed to handle even the most challenging projects.

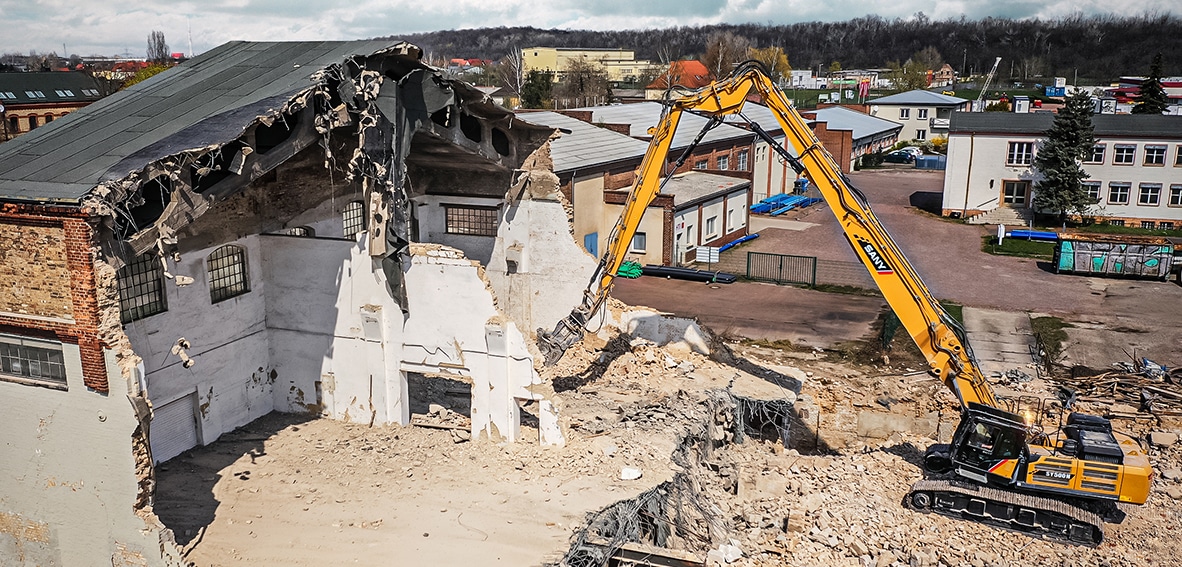

With its 28.15-metre boom, the SY500HRD takes demolition tools to new heights, offering exceptional reach and efficiency. Whether working in high-risk environments or managing complex demolition tasks, the hydraulically extendible chassis ensures maximum stability, even in the toughest conditions.

The SY500HRD is built for performance but also excels in cost-efficiency. The auto-idle function and electronic fuel injection adjust engine speed to match the task, reducing fuel consumption, engine wear, and emissions. With long maintenance intervals, this machine minimises downtime, ensuring lower operating costs and higher productivity.

Key Features:

  • Gross Power: 298 kW @ 2100 rpm – Delivers high performance and maximum power for demanding demolition tasks.

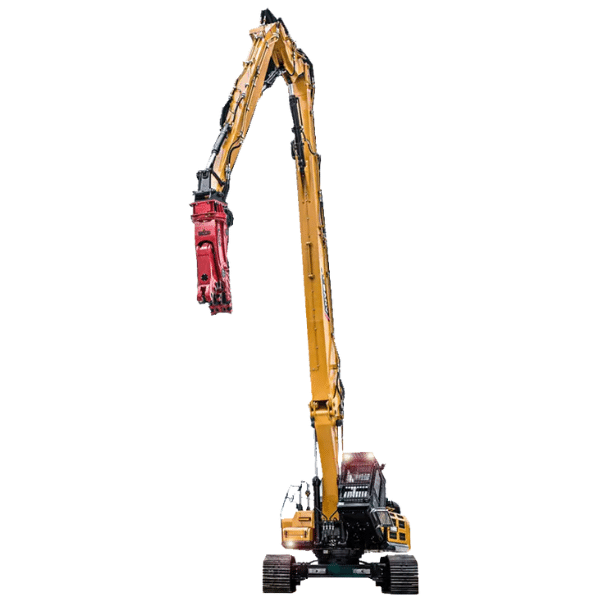

  • Reach Height: 28.15 metres – Extra-long boom provides the reach needed for high-level demolition work.
  • Operating Weight: 64,000 kg – Heavy-duty design ensures stability and strength, even in challenging environments.

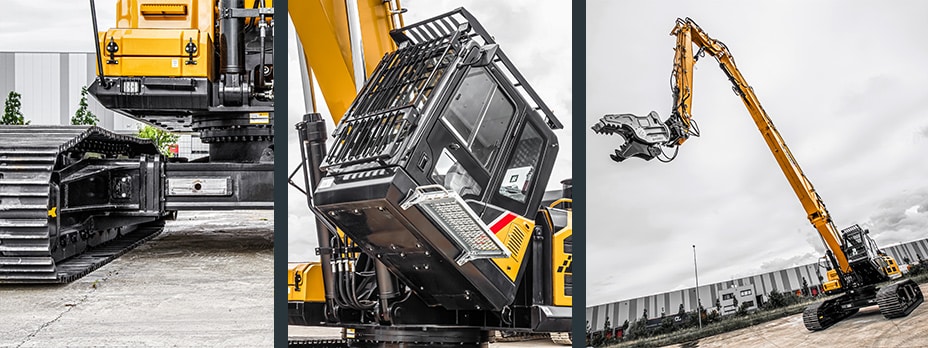

  • Hydraulically Extendible Chassis – Provides added stability for tough demolition tasks, enhancing operator safety and control.
  • 4-Year/8000-hour Warranty – Ensures peace of mind with long-term support.

Ready to tackle your toughest demolition projects with maximum power and precision? Contact us today to learn more about how the SANY SY500HRD can transform your job site or schedule a demo to experience its capabilities firsthand.



SPECIFICATIONS

OPERATION RANGE
Height at min. swing radius 10 331 mm
Max. digging depth 7705 mm
Max. digging height 12 712 mm
Max. dumping height  5354 mm
Min. reach height 7575 mm
Min. swing radius 5470 mm
DIMENSIONS
Tail swing radius 4126 mm
Track length 5440 mm
Cabin height 3476 mm
Transport length 20 000 mm
Transport width 3400 mm
Upper width 3292 mm
UNDERCARRIAGE/WORKING DEVICE
Track gauge 3500 mm
PERFORMANCE
Fuel tank capacity 680.0 L
Gradeability 10°
Hydraulic tank capacity 480.0 L
Swing speed 7.0 rpm
Travel speed 1.4 km/h
