SANY SY16C 1.7T

When it comes to pint-sized power, look no further than the SY16C mini excavator. Efficient performance in a mini format, this 1.7t excavator is ideal for ‘getting it done’ in tight spaces and on tough jobs.

Engine: Yanmar 3TNV80F
Rated Power: 14.6 kW / 2 400 rpm
Bucket Capacity: 48 L/pm
Operating Mass: 1750 kg
Warranty: 5 Year/5000 hr
Availability: In Stock
Finance: Available now – LEARN MORE

SY16C HOT DEAL PACKAGE: From $19 a day*TOW & GO HOT DEAL PACKAGE: From $25 a day*

 Download brochure (PDF)



Quick Quote

DESCRIPTION

Meet the SANY SY16C: Your Compact Powerhouse for Challenging Jobs

The SANY SY16C is designed to tackle even the toughest jobs with ease. Measuring just 980mm in width but packing an impressive operating weight of 1.75 tonnes, this mini excavator maneuvers effortlessly through tight and narrow spaces, making it your ultimate construction companion.

Perfect for garden and landscaping projects, as well as indoor construction, the SY16C’s small stature allows it to perform where larger machines simply can’t.

Packed with features, the SY16C delivers exceptional performance and comfort:

· High-Quality Components: Crafted with cutting-edge technology and high-quality components, the SY16C guarantees superior performance and exceptional operational safety.

· Economically Impressive: Offering low procurement costs and outstanding fuel efficiency, this excavator ensures you get the most out of your investment.

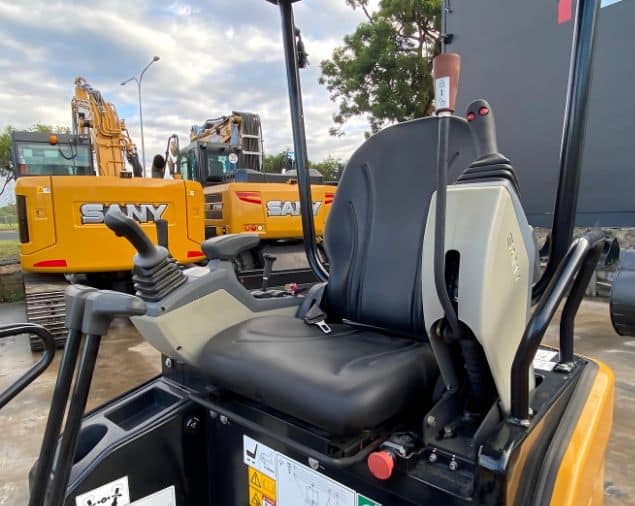

· User-Friendly Design: Designed with the operator in mind, the SY16C boasts a spacious cab, ergonomic controls, and a comfortable air-suspension seat, ensuring smooth, fatigue-free operation.

· Versatility in Tight Spaces: Its compact size makes it perfect for hard-to-reach areas, providing the flexibility to handle any challenge.

Ready to make the SY16C your next job site hero? Take advantage of YELLO Financeâ„¢ and get it packaged with 3 buckets, a ripper, and a half hitch from just $19 per day!*

Maximise your efficiency with our Tow & Go package, which includes the SY16C excavator, a Sureweld SW2600 trailer, and a three-bucket & half hitch pack—all ready to go at a moment’s notice. Act now to secure the Tow & Go package under YELLO Finance™ for just $25 per day*—available in-stock and ready to power your next project.

*Terms and conditions apply.

SPECIFICATIONS

ENGINE
Displacement 0.993L
Engine model Yanmar 3TNV80F
Rated power 14.6 kW/ 2400 rpm
OPERATION RANGE
Max. depth of blade down 320 mm
Max. digging depth 2360 mm
Max. digging height 3665 mm
Max. digging reach 4000 mm
Max. dumping height 2635 mm
Max. excavating distance 4000mm
Max. ground clearance of blade up 310 mm
Max. vertical digging depth 2215 mm
Min. swing radius 1705 mm
Operating weight 1750kg
DIMENSIONS
Blade height 280 mm
Cab height 470mm
Min. ground clearance 180 mm
Tail swing radius 920 mm
Track length 1585mm
Transport height 2420 mm
Transport length 3575 mm
Transport width 980/1350 mm
Upper width 980 mm
UNDERCARRIAGE/WORKING DEVICE
Arm length 1130 mm
Boom length 1810 mm
Bucket capacity 0.04 m³
Track gauge 750/1120 mm
Track width 230 mm
PERFORMANCE
Arm digging force 9.2 kN
Bucket digging force 15.2 kN
Cooling system 3.8L
Engine oil 2.0L
Fuel tank capacity 23L
Gradeability 30°
Ground pressure 29.1kg/cm² / 30.8kg/cm²
Hydraulic tank capacity 21L
Swing speed 10 rpm
Travel speed 3.8/2.2 km/h
HYDRAULIC SYSTEM
Hydraulic motors – swing 10rpm
Hydraulic motors – travel 2.1/3.7km/h
Main pump – maximum flow 48lpm
