SY19E
SY19E
,

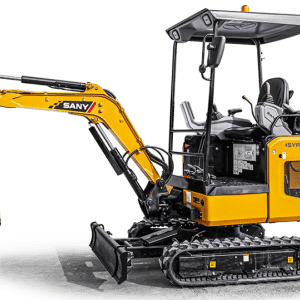

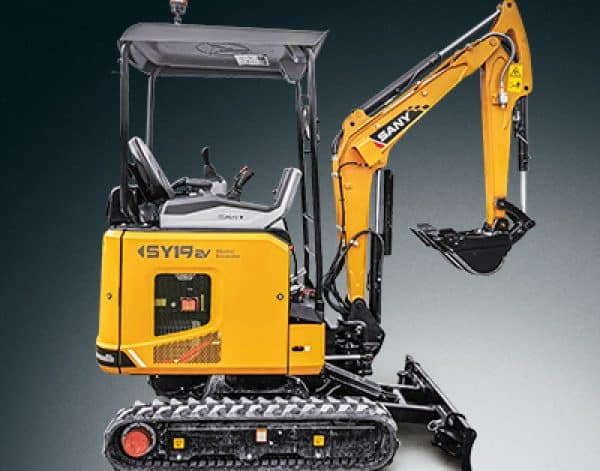

SANY SY19E 1.9T

The new, electrically powered SY19E mini excavator is the right choice wherever low emission and noise levels need to be combined with efficient work. Both the working environment, such as residential areas or in buildings, and the operator benefit from low noise levels and no exhaust gases.

Engine: Vmax
Top Rated Power: 15kw
Operating Mass: 1965 kg
Warranty: 5 Year/5000 hr
Availability: In Stock
Finance: Available now – LEARN MORE

 Download brochure (PDF)



Quick Quote
Categories: ,

DESCRIPTION

Ready for High Voltage – Zero Emisson. Electric. Efficient.

For those in search of a powerful and versatile excavator that can handle even the smallest and tightest spaces, the SANY SY19E mini excavator is an excellent choice. With its compact size and powerful performance, this machine is designed for a variety of earth-moving and excavation tasks.

Despite its small size, the SY19E delivers exceptional performance, with an operating weight of 1.9 tonnes and a maximum digging depth of 2.13 metres. Its efficient engine provides excellent fuel economy, while the advanced hydraulic system ensures precise control and smooth operation.

In addition to its compact size, the SY19E is equipped with a comfortable and spacious cab. The cab features an adjustable suspension seat, air conditioning, and a radio with USB connectivity, providing operators with a comfortable and convenient workspace.

The SY19E is also built to last, with a sturdy steel frame and easily accessible engine compartment for easy maintenance. Additionally, the machine comes equipped with a range of safety features, including a ROPS/FOPS-certified cab, a backup alarm, and an emergency stop button.

Overall, the SANY SY19E mini excavator is a powerful and versatile machine that is perfect for a wide range of construction and excavation tasks, especially in tight and confined spaces. With flexible financing options and convenient Tow & Go packages, the SY19E is an accessible and reliable choice for contractors and construction professionals.

SPECIFICATIONS

ENGINE
Engine model Vmax Permanent magnet VAIYS62317-001
Rated power 10 kW/2000 rpm
OPERATION RANGE
Ground Pressure 0.31 kg/cm2
Max. depth of blade down 320 mm
Max. digging depth 2360 mm
Max. digging height 3410 mm
Max. digging reach 4000 mm
Max. dumping height 3665 mm
Max. vertical digging depth 2215 mm
Operating weight 1965kg
DIMENSIONS
Min. ground clearance 180 mm
Tail swing radius 900 mm
Track length 900mm
Transport height 980 mm
Transport length 3624 mm
Transport width 980/1350 mm
UNDERCARRIAGE/WORKING DEVICE
Bucket capacity 0.04 m³
Track gauge 750/1120 mm
PERFORMANCE
Arm digging force 9.2 kN
Bucket digging force 15.2 kN
Gradeability 30°
Ground pressure 0.31 kg/cm2
Swing speed 10 rpm
Travel speed 3-4 km/h

BENEFITS & FEATURES

SHOW STRENGTH
Improved stability and fewer stress concentrations – the components exposed to the most stress (the boom and the bucket arm) have been extended significantly again. This has resulted in the service life being extended by 30%.

POWER PACK
The high power capacity and short charging time of the innovative battery pack mean that the mini excavator is quickly ready for operation and can work continuously for up to six hours on one full battery charge – enough for an entire working day.

DESIGNED FOR EVERYDAY WORK
The comfortable driver’s seat with a high backrest offers excellent comfort and enough freedom of movement to be able to reach all of the controls comfortably. There is also plenty of room in the footwell and the new pedal layout makes operating the pedals much more convenient and safer.

VISIBILITY FOR SAFETY
The TOPS-/FOPS-tested operator’s platform offers excellent all-round visibility. In poor lighting conditions, this is supported by two LED working lights in the roof lining and one on the boomer.

PERFECT DUO
The two perfectly matched components – the permanent magnet synchronous motor with its high power density and the innovative, reliable battery pack – provide a high level of efficiency and low energy consumption.

LESS IS MORE
The new mini excavator is also modest with respect to operating costs. Users can make considerable savings as the machine consumes around 30% less energy and its maintenance costs are reduced by 80%.
