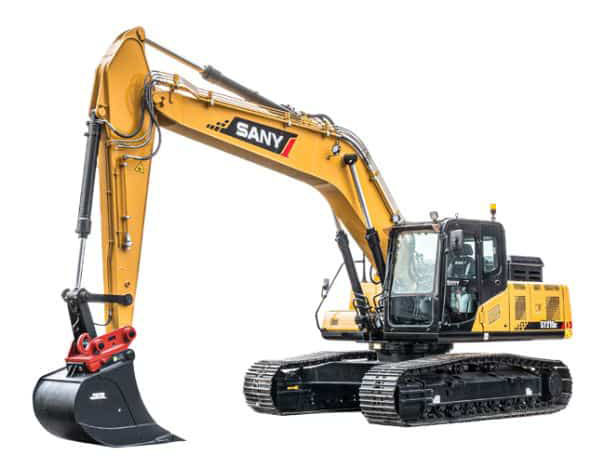

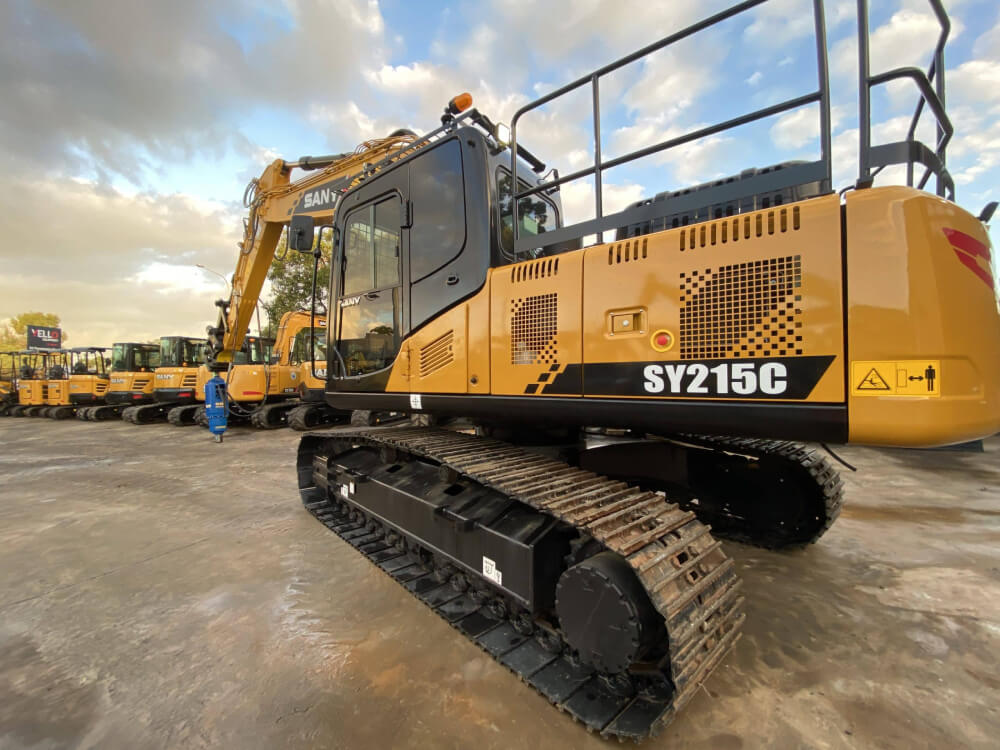

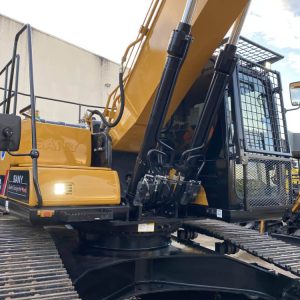

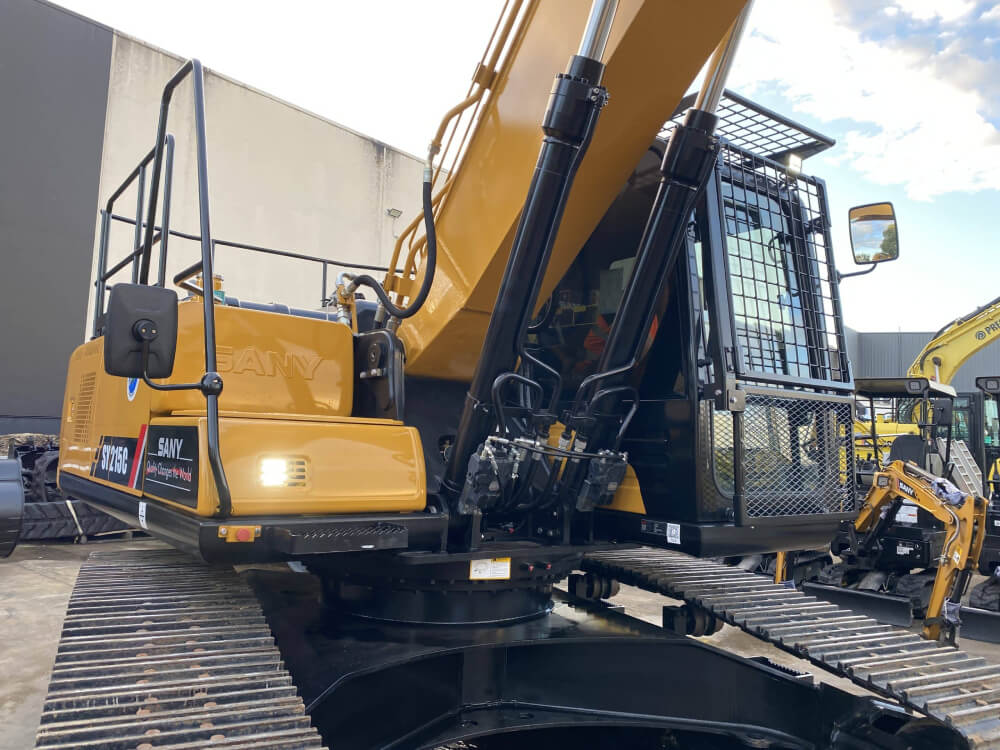

SANY SY215C 22T

Delivering consistency, strength and versatility? Look no further than the SY215C. Combining impressive power and outstanding driver comfort, this machine guarantees exceptional cost efficiencies whilst being one of the most versatile machines in the fleet.

Engine Mitsubishi 4M50
Rated power 118kw / 2000rpm
Bucket capacity  0.93 m3
Operating weight  21,900 kg

Warranty: 4 Year/8000 hr
Availability: In Stock

 Download brochure (PDF)





Quick Quote

DESCRIPTION

Consistently Strong. Remarkably Versatile – SANY SY215C Excavator

With the SANY SY215C crawler excavator, you get more done! No matter the application, this digger applies its power with precision. Boasting an impressive 21.9t operating weight and 2000 rpm rated power, the SY215C is ready to withstand a great deal whenever the going gets tough on site. Nothing is left to be desired when it comes to user experience.

This comfortable workstation is well equipped with an individually adjustable, air-suspension seat centred around the easy to reach controls and large monitor. The operator can thrive during a full day’s work with the automatic climate control system, radio and additional USB port.

The SANY SY215C is known for its precise power influenced by a range of quality features including…

  • 6-cylinder Cummins engine
  • LED roof headlights that allow for exceptional visibility
  • Operator-influenced cabin design for maximum comfort
  • Durable & robust in the toughest conditions
  • Boom safety valve & overload warning system
  • Powerful & efficient with lower fuel consumption
  • Excellent cost-effectiveness with greater power

This excavator is a true all-rounder and a specialist in every discipline, from quick loading to precise digging and powerful demolition work, the SY215C boasts maximum productivity and therefore, a fast return on investment.

SPECIFICATIONS

ENGINE
Displacement 5.86L
Emission standard Tier 3
Rated power 118kw / 2000rpm
OPERATION RANGE
Height at min. swing radius 7680 mm
Max. digging depth 6600 mm
Max. digging height 9600 mm
Max. digging reach 10280 mm
Max. dumping height 6730 mm
Max. vertical digging depth 6255 mm
Operating weight 21900kg
DIMENSIONS
Cab height 3075 mm
Min. ground clearance 440 mm
Tail swing radius 2900 mm
Track length 4250 mm
Transport height 3440 mm
Transport length 9680 mm
Transport width 2980 mm
Upper width 2875 mm
UNDERCARRIAGE/WORKING DEVICE
Arm length 2.9m
Boom length 5.7m
Bucket capacity 0.93m³
Track gauge 2380mm
PERFORMANCE
Arm digging force 103kN
Bucket digging force 138kN
Engine oil 22 L
Fuel tank capacity 340 L
Gradeability 35°
Ground pressure 47.4kPa
Hydraulic tank capacity 239 L
Swing speed 11 rpm
Travel speed 5.4 km/h / 3.3km/h

FEATURES & BENEFITS

+ Comfortable driver’s cab
+ Fast, powerful hydraulics
+ Extensive safety equipment
+ Clear instruments and intuitive display
+ Heavy duty undercarriage
+ High quality welded seams
