Material Handling, Wheeled Material Handlers

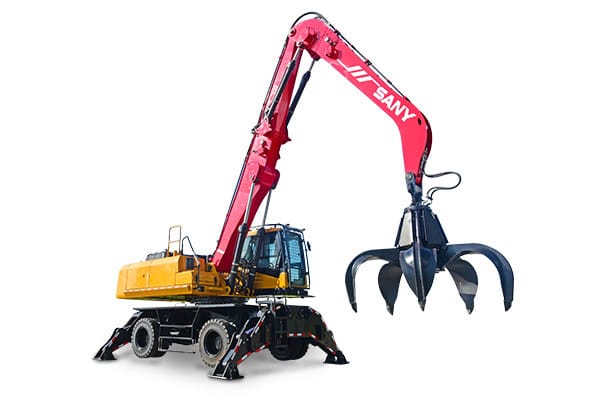

SANY SMHW30 Wheeled Material Handler

Engine: Mitsubishi DO6FRC-TAA
Rated Power: 147 kW/2100 rpm
Working Radius: 11.5m
Working Height:12m
Availability: Coming Soon

Download brochure (PDF)

Categories: Material Handling, Wheeled Material Handlers

SPECIFICATIONS

ENGINE
Engine Type	Mitsubishi DO6FRC-TAA
Rated Power	147 kW/2100 rpm
Max. Torque	750 Nm/1350 rpm
Exhaust Standard	CHN III Stage
Cylinder/Displacement	6/6.373L
OPERATION RANGE
Oil Capacity	465L
Moveable Boom	6.8m
Loading Stick	5.6m
Working Radius	11.5m
Working Height	12m
Working Depth	-4.5m
Cabin Lifting Height	2.65m
Max. Rotation Speed	8 r/min
Rotation Radius	3.31m
MOBILE BASE
Wheelbase	2.38m
Axle Track	2.8m
Max. Travelling Speed	20km/h
HYDRAULIC
Hydraulic Tank Range	230L
Hydraulic Type	A28VO130E71CPB/10DRVG3R12F1B2S40-0
Max Flow	460L/Min

FEATURES & BENEFITS

Advance structure design
Lighter and Stronger
Smart controller can control the engine speed, output according to the real time capacity
Saving 10% fuel consumption by using Kawasaki positive hydraulic system and Sany DOMCS control system.
Can load 13 units 40 ton truck within one hour
