SANY SY155W

The SY155W demonstrates how strong performance can take
to the road, reliably and safely. When it comes to mobility, the SANY SY155W is unrivaled, both on the construction site and over short distances. This compact wheeled excavator is an all-rounder boasting exemplary productivity and flexibility, working not only with strength but also precision

Engine: DEUTZ TCD4.1 L4
Rated Power: 115 kW / 2 000 rpm
Bucket Capacity: 0.6 m3
Operating Weight: 15 000 kg
Warranty: 5 Year/5000 hr
Availability: Pre-Order
 Download brochure (PDF)

Quick Quote
Category:

SPECIFICATIONS

DIMENSIONS
Operating weight 15000 kg
Standard bucket capacity 0.6
Transport length 7500 mm
Transport width 2550 mm
Height over cabin/ROPS 3200 mm
ENGINE
Rated power 115kW 2000rpm
WORKING AREA
Max. digging depth 5400 mm
Max. digging reach 8900 mm
Min. swing radius 2030 mm
Bucket digging force ISO 87 kN
Arm digging force ISO 64 kN
HYDRAULIC SYSTEM
Max. oilflow 250 l/min

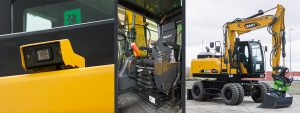

FEATURES & BENEFITS

+ Air-suspension seat
+ ZF gearbox and Deutz engine
+Fast and powerful hydraulics
+ Two -piece boom
+ Camera for good visibility on all sides
