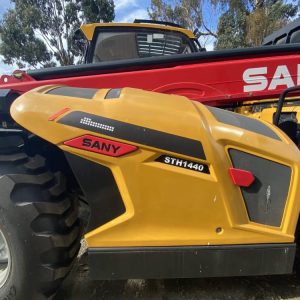

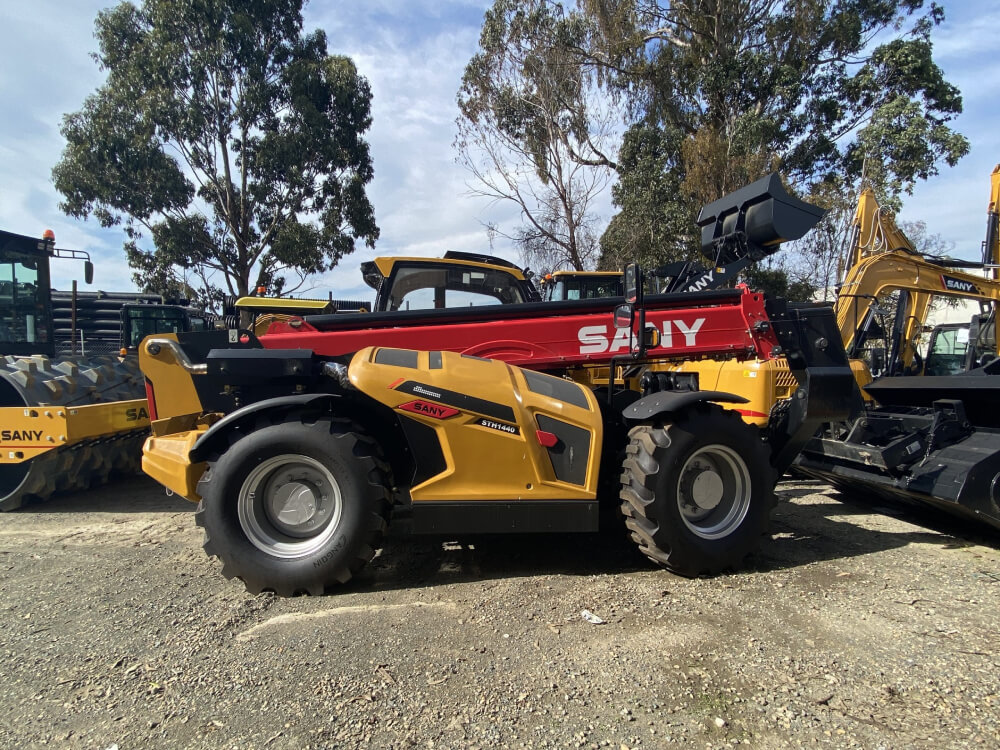

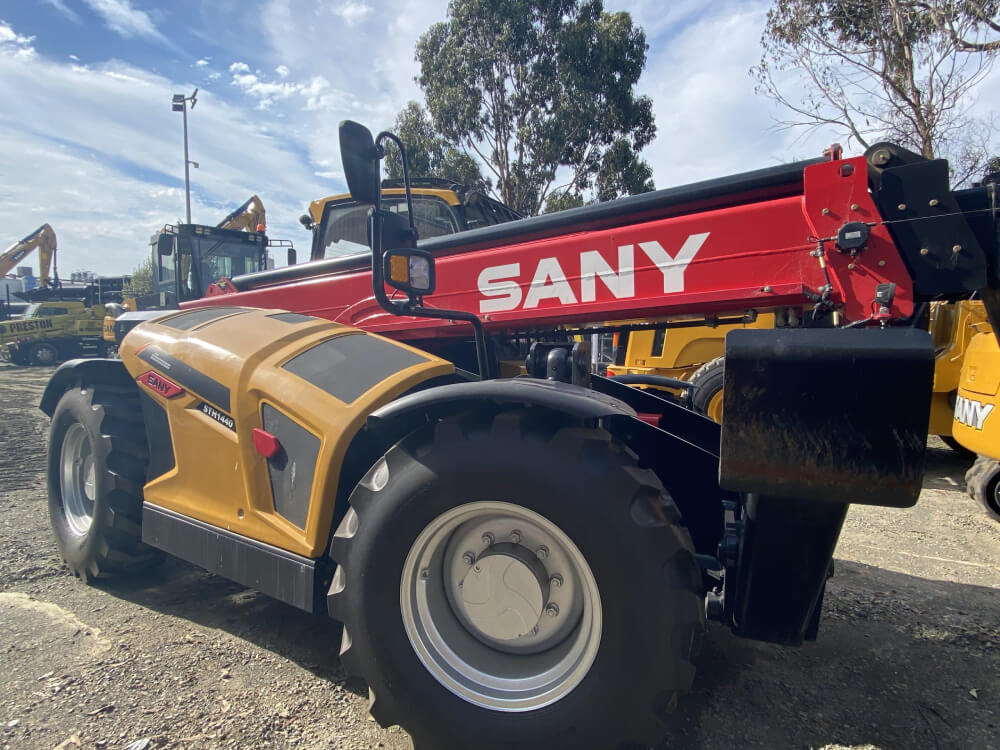

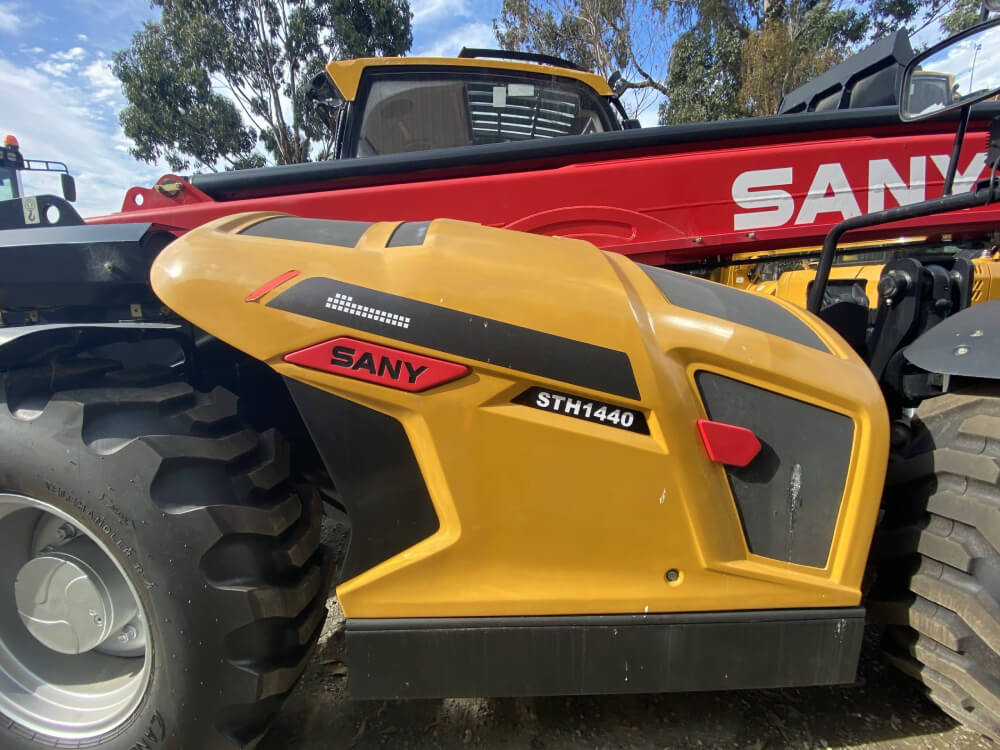

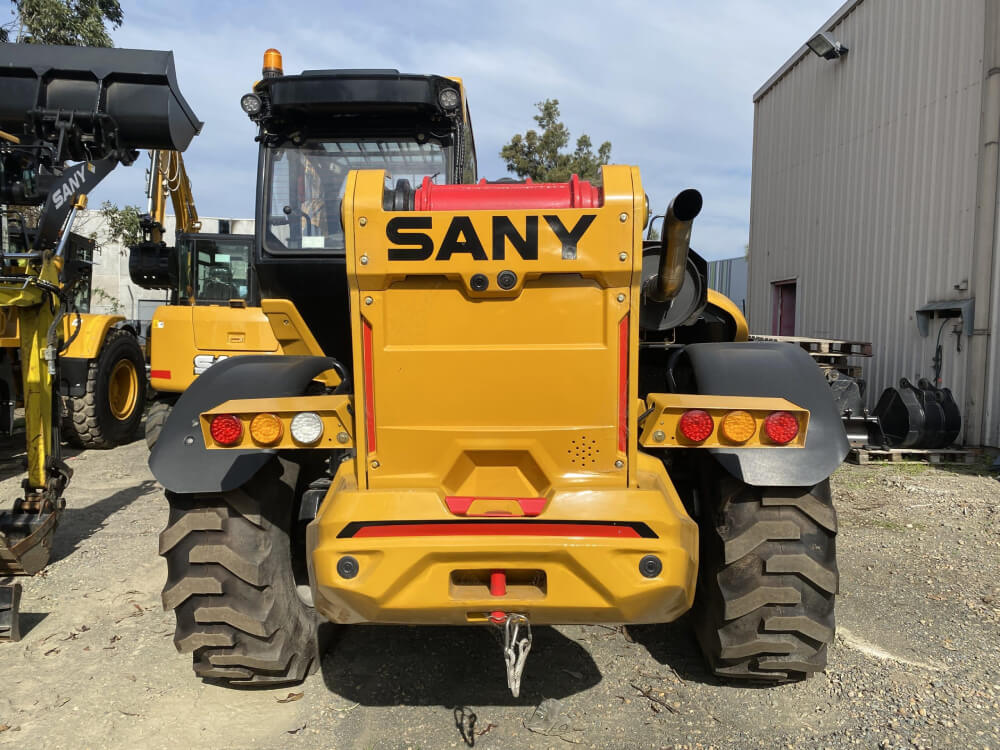

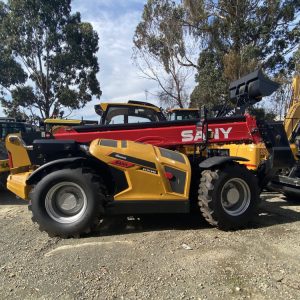

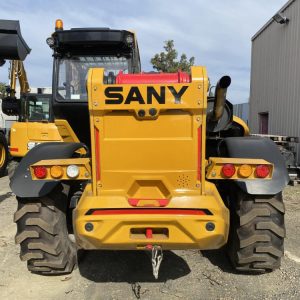

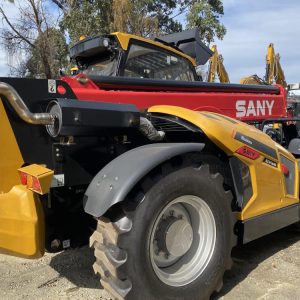

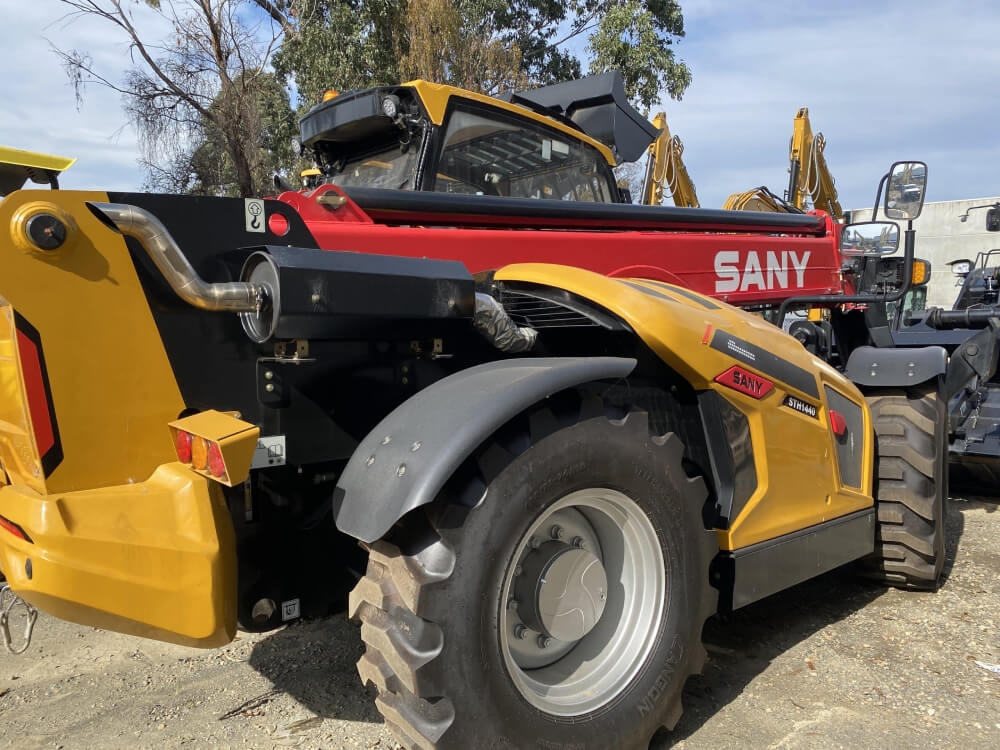

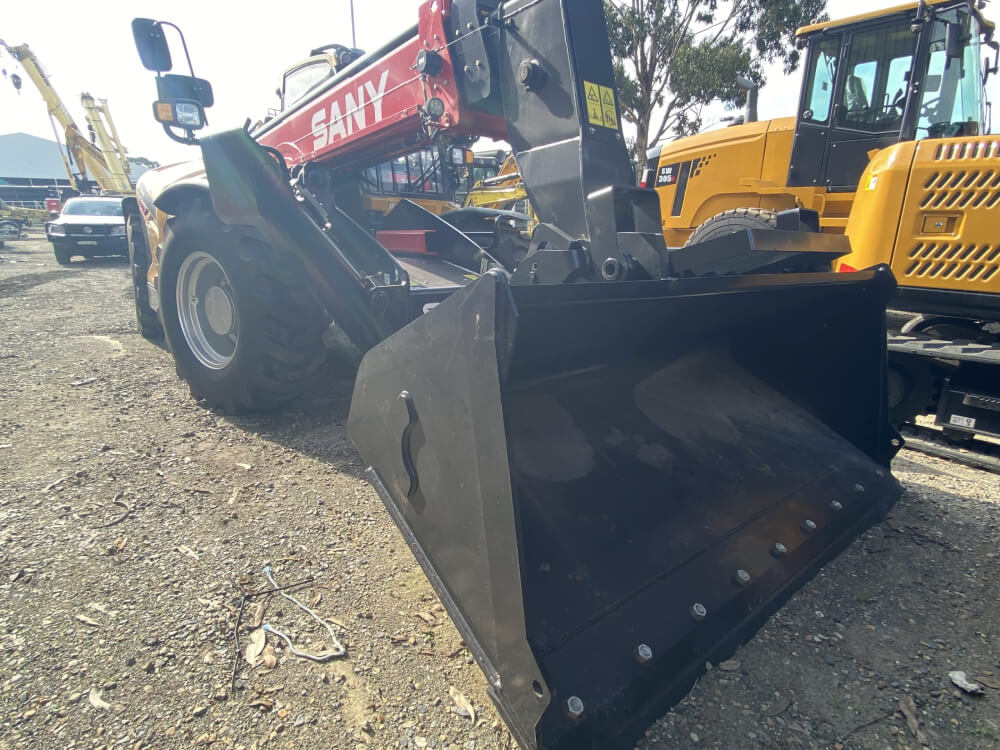

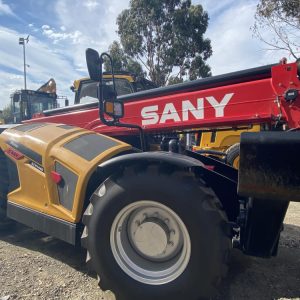

SANY STH1440

SANY’s telehandler range is designed to meet the exact needs of the construction and rental industry. Coming will be a wide range of different styles and sizes, SANY’s versatile telehandler offers you all the safety, durability, versatility and low cost of ownership that you need to compete in today’s construction market.

Engine: Deutz TD 3.6L
Rated Power: 55 kW / 2 600 rpm
Maximum Lifting Height: 14/18 m
Load Capacity: 4000 kg
Warranty: 2 Year/2000 hr
Availability: In Stock
Finance: Available now – LEARN MORE

 Download brochure (PDF)

Quick Quote

DESCRIPTION

Work Smarter, Not Harder with the SANY STH1440 Telehandler

The SANY STH1440 telehandler is engineered to meet the rigorous demands of today’s construction and rental industries. With its durable design and impressive safety features, this telehandler combines versatility with reliability, making it the ideal choice for those who need high performance in any environment.

Powered by a robust Deutz 55kW engine, the SANY STH1440 delivers superior lifting capacity and precision, ensuring smooth and efficient operations on even the most challenging job sites. Whether you’re navigating tight spaces or lifting heavy materials to great heights, the STH1440 will get the job done safely and efficiently.

Packed with advanced features, this telehandler is built to redefine efficiency and operator comfort:

Superior Safety:

· Automatic Stability Monitoring: Stay secure on the job site with real-time monitoring of machine movements and load weights, reducing the risk of hazardous situations.

· Enhanced Visibility: Standard LED working lights on the front and rear ensure optimal visibility in low-light conditions, while optional boom work lights provide improved illumination for loading at height.

· Comprehensive Safety Package: An integrated load management system with precise weight tracking (accurate to within 5%) gives operators visual and acoustic warnings, keeping both workers and materials safe.

Ease of Maintenance:

· Simplified Maintenance: Daily checks and routine maintenance tasks can be done easily from ground level, with centrally located filters and a gas-powered cylinder for smooth access to the engine compartment.

· Accessible Design: The battery is easily reachable through a fold-up step under the cab, allowing for quick maintenance and minimal downtime.



Quality and Durability:

· Built to Last: With a deeply mounted boom and a low center of gravity, the STH1440 offers exceptional stability and structural integrity. The heavy-duty design is engineered to withstand the toughest conditions.

· Extended Maintenance Intervals: Graphite-impregnated bronze bushings ensure long-lasting performance, with maintenance intervals extending to 500 hours.

Unmatched Efficiency:

· Fuel-Efficient Power: The Deutz common rail injection system and electronic engine control (EMR) optimise engine output while reducing fuel consumption, keeping operational costs low.

· Optimised Transmission: The Dana transmission, perfectly paired with the axles, ensures high performance, while the absence of AdBlue additives simplifies engine operation.

Exceptional Productivity:

· Flexible Steering Options: Featuring three steering modes—two-wheel, four-wheel, and crab steering—the STH1440 excels in maneuverability, allowing for seamless operation in tight spaces.

· Powerful Load-Sensing System: The hydraulic load-sensing system adapts pressure based on output, improving overall material handling speed and precision.

Ultimate Operator Comfort:

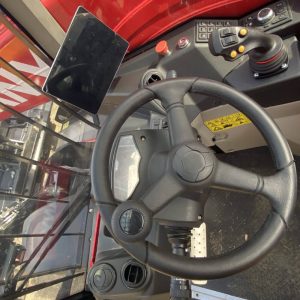

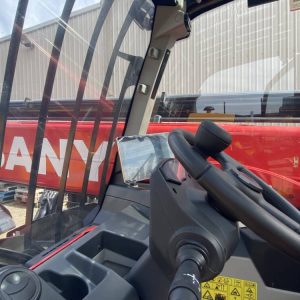

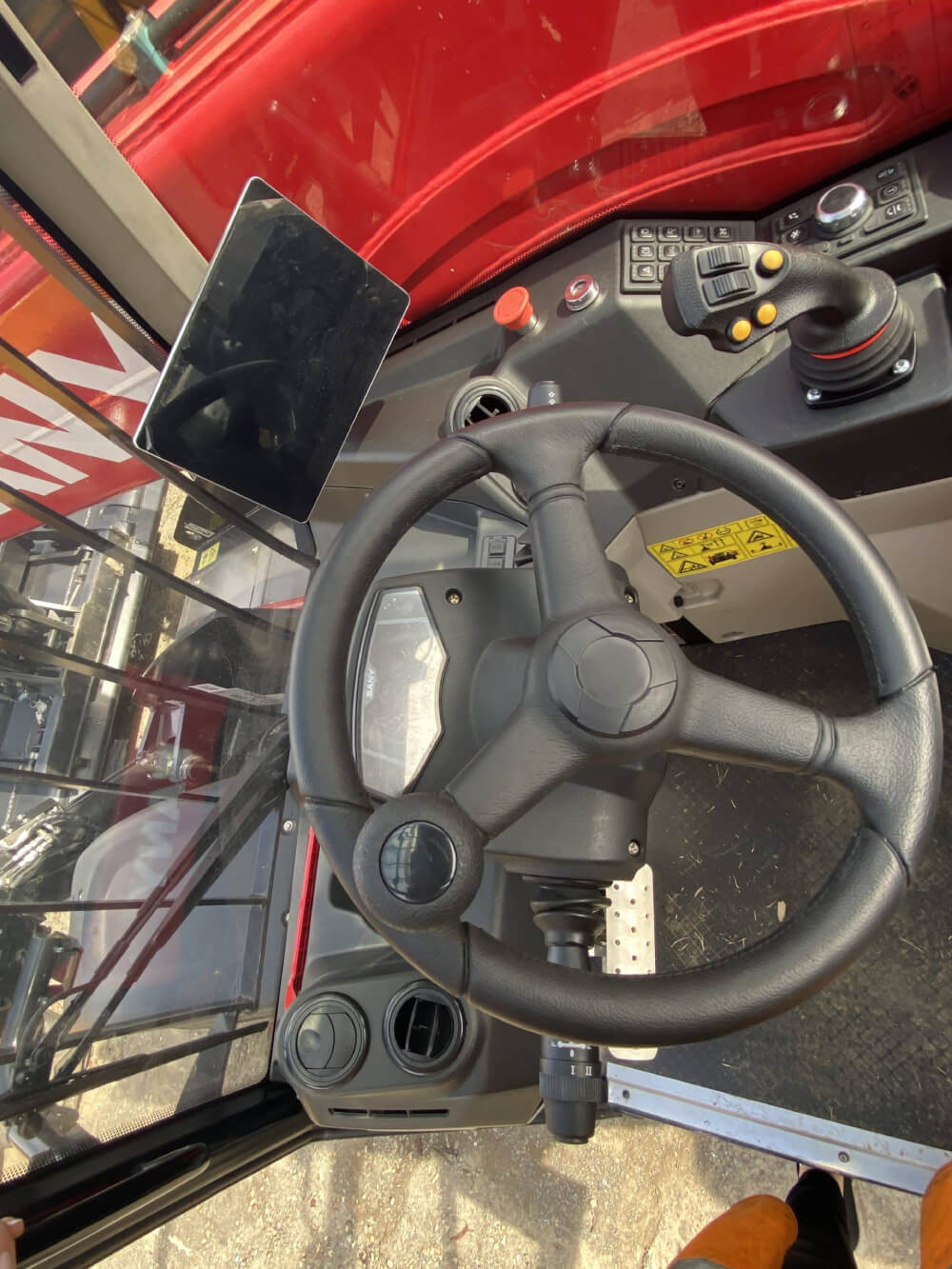

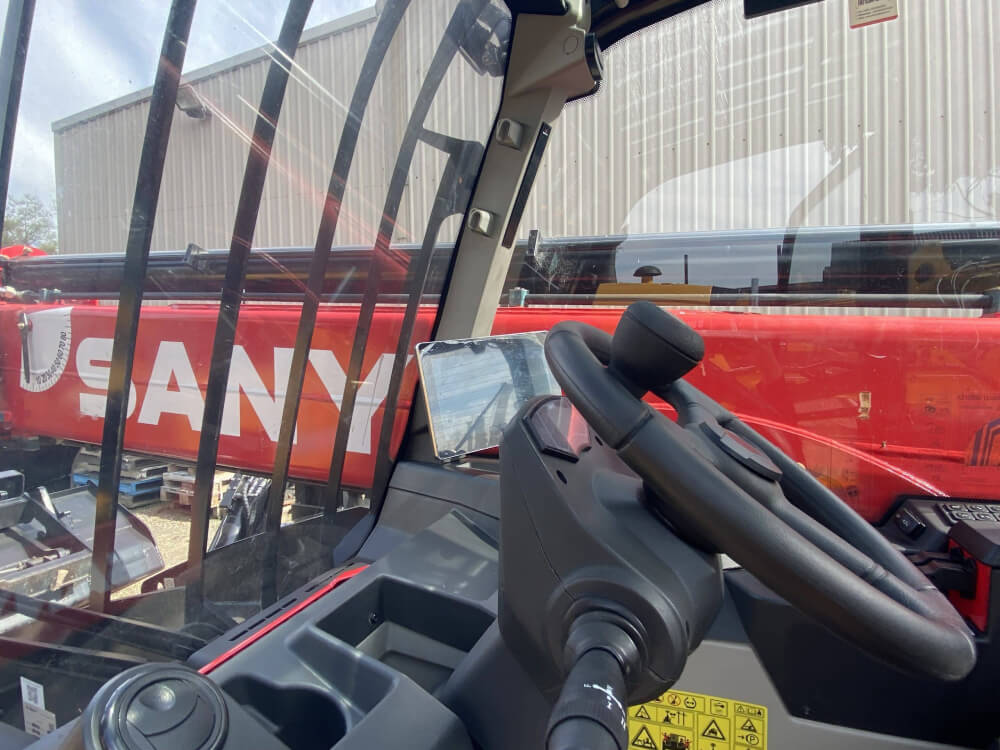

· Spacious, Intuitive Cab: The German-designed cab offers superior comfort, featuring a 7-inch touchscreen display with intuitive controls, Bluetooth connectivity, USB ports, and an inclinable, telescopic steering column for customisable comfort.

· Thoughtful Amenities: Practical features like a document pocket, cup holder, and armrest with integrated USB connectors ensure that operators have everything they need for a productive workday.

Ready to elevate your project efficiency and tackle the toughest tasks with ease? The SANY STH1440 delivers superior performance, safety, and comfort – making it the ultimate solution for your lifting needs.

SPECIFICATIONS

STH1440 STH1840
ENGINE
Rated power 55 / 2 600 55 / 2 600 kW / rpm
PERFORMANCE PARAMETERS
Maximum lift capacity 4 000 4 000 kg
Lift capacity at maximum height 3 000 2 500 kg
Lift capacity at maximum reach 1 250 550 kg
Lift height 13 970 17 550 mm
DIMENSIONS
Length to front of carriage 6 160 6 200 mm
Overall width 2 420 2 420 mm
Height over cab without beacon 2 595 2 595 mm
Height over cab with beacon 2 720 2 720 mm
Wheelbase 2 750 2 750 mm

STANDARD EQUIPMENT

MORE FEATURES, MORE POSSIBILITIES

All SANY telehandlers are comprehensively equipped ex works, meaning that they quickly prove themselves as powerful all-rounders. With numerous options and attachments, they can be individually configured as necessary – leaving them perfectly equipped for the respective requirements.

OPERATING COMFORT/CAB:

› Seven-inch touchscreen display and encoder navigation
› Air conditioning*
› Radio with Bluetooth and microphone
› Adjustable seat with suspension
› USB/AUX connections
› 12 V power socket
› Sunblind, roof and front screen
› Heated rear screen
› Front, roof and rear wiper and washers
› Armrest with storage and USB charger
› Cup and bottle holders
› Fully adjustable steering column
› Intuitive keypad functions (all backlit)
› Telematics

* The air-conditioning system contains fluorinated greenhouse gases: Refrigerant type: HFC 134a, global warming potential: 1430, quantity: 65 kg, CO2e: 0.933 tonnes.

SAFETY:

 CE-/UKCA-certified
 ROPS ISO:3471 and FOPS ISO:3449
 Automatic park brake system
 Reversing alarm
 Hi-viz seatbelt
 Integrated reversing camera and pulse radar
 Seat switch and green “ready” beacon
 Load weight monitoring
 Load moment Indicator display

WORK EQUIPMENT:

 Three steering modes: 4WS, 2WS and crab
 Chassis levelling +/-9 degrees
 Fully proportional joystick with FNR

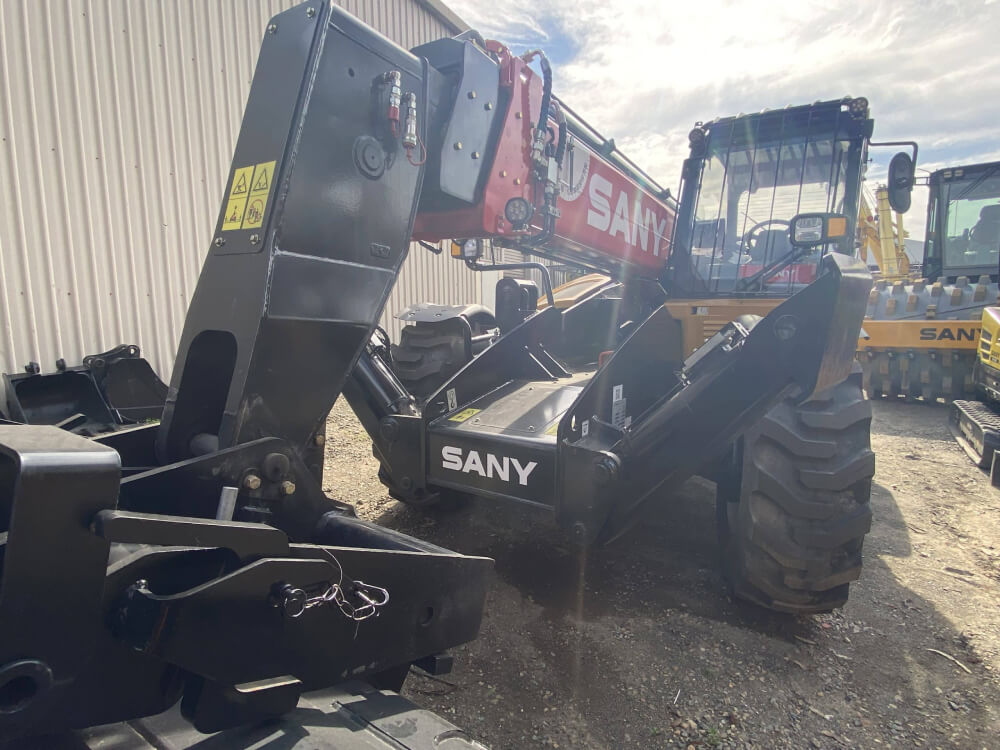

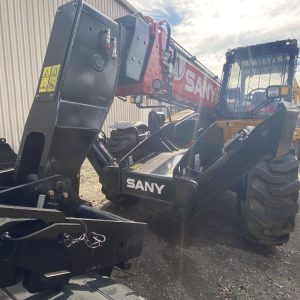

 Fixed SANY fast fit carriage and 1200 mm forks
Auxiliary hydraulic venting from cab.

WORKING LIGHTS:

 LED working lights on cab and boom
 Full road lights
