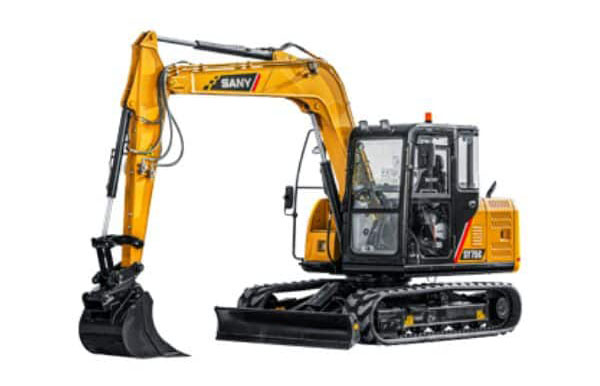

SANY SY75C 7.2T

This machines raises the bar for the compact class of excavators. The SY75C includes large excavation depth and a sophisticated structure allowing it to tackle high loads with exemplary stability. Combined with a comfortable and ergonomic cab for operator comfort, the SY75C will tick all of your requirements.

Engine: Yanmar 4TNV98C
Rated Power:
42.4 kW / 1900 rpm
Operating Mass:
7280 kg
Warranty:
5 Year/5000 hr
Availability:
In Stock
Finance:
Available now – LEARN MORE

 Download brochure (PDF)

Quick Quote

DESCRIPTION

Precision and Power Redefined – The SANY SY75C Excavator

The SANY SY75C raises the bar for compact excavators, offering both powerful performance and exceptional versatility. With a robust 7.2-ton frame, the SY75C boasts impressive excavation depth and the ability to efficiently handle a range of attachments, optimising it for numerous applications—from road construction to heavy-duty loading work.

Key Features:

  • 360º Visibility & Rear Camera: Providing full visibility and enhanced precision for safer, more efficient operations.

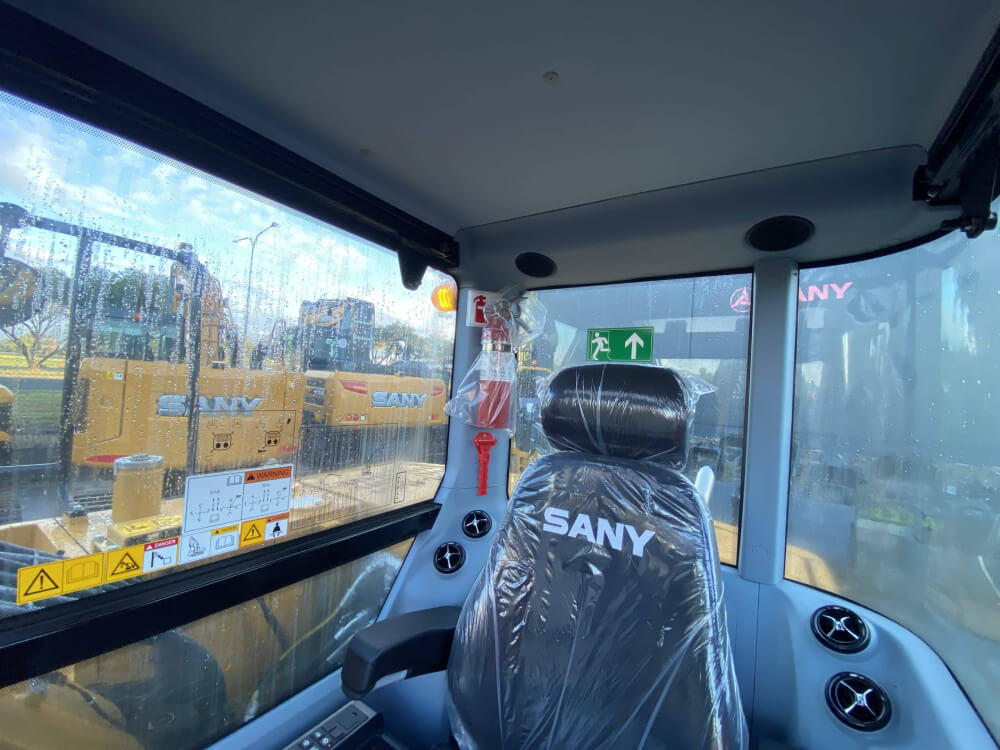

  • Ergonomic Operator Controls: Designed for comfort and long-term productivity with easy-to-use controls and a spacious cabin.
  • High Torque Yanmar Engine: Delivering reliable, powerful performance under tough working conditions.
  • Optimised Load-Sensing Hydraulics: Boosting fuel efficiency by up to 10%, helping reduce costs and improve operating time.
  • Enhanced Lifting Capacity: Capable of lifting heavier loads over longer distances, making it a reliable partner for any challenging job site.

Ideal for tight spaces and tough environments, the SY75C is engineered to deliver high performance, reliability, and versatility in all working conditions.

SPECIFICATIONS

ENGINE
Displacement 3.32L
Rated power 42.4kW/1900 rpm
OPERATION RANGE
Max. digging depth 4450 mm
Max. digging height 7390 mm
Max. dumping height 5490 mm
Max. vertical digging depth 3840 mm
Min. swing radius 1940 mm
DIMENSIONS
Blade height 405 mm
Tail swing radius 1800 mm
Transport height 2570 mm
Transport length 6115 mm
Transport width 2220 mm
Upper width 2040 mm
UNDERCARRIAGE/WORKING DEVICE
Arm length 2050 mm
Boom length 3720 mm
Track gauge 2195 mm
Track pads width 450 mm
PERFORMANCE
Arm digging force 35 kN
Bucket digging force 53 kN
Engine oil 10 L
Fuel tank capacity 150.0 L
Drive per side 1.2 L
Gradeability 35°
Hydraulic tank capacity 120.0 L
Swing speed 10.5 rpm
Travel speed 2.8 km/h / 5.3 km/h

FEATURES & BENEFITS

+ Emergency engine shut down+ double pipe
+ Handle ratio control
+ Muti-function short joystick
+ SAE/BHL Change
+ Standard boom (3720mm)
+ long Stick (2050mm)
+ 450mm steel track+ROPS &FOPS Cab
+ 12V-Volt port
+  UL certified fire extinguisher
+ Battery main switch
+ Travel Alarm
+ North American English Decal
